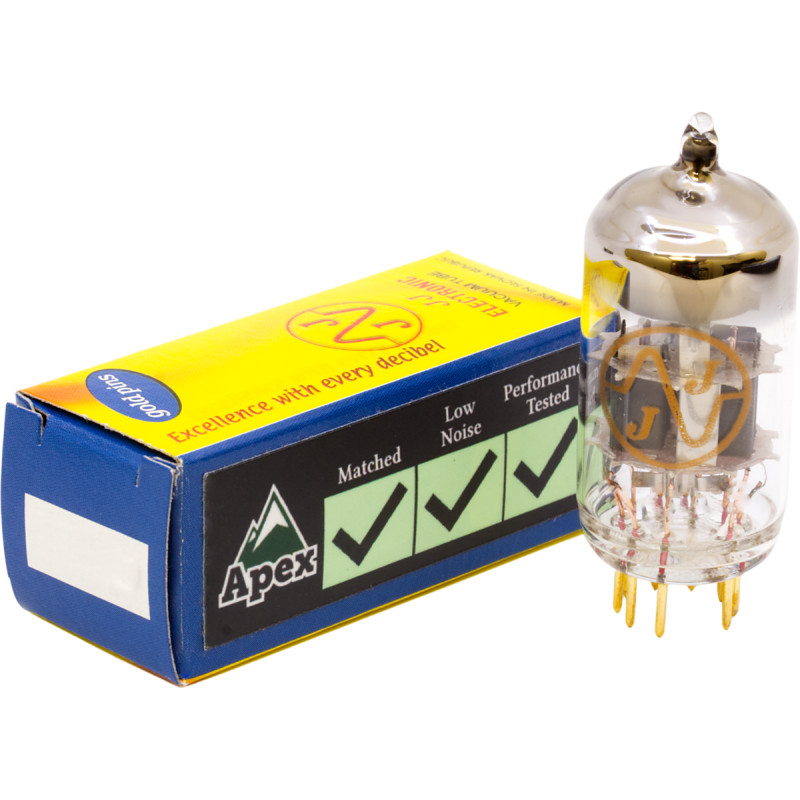

12AU7 / ECC82, JJ Electronics, Apex Matched & Performance Tested, Gold Pin

USD 35.15 USD

SKU: gRBg7ZDP

Brand: JJ Electronics

MPN: T-12AU7-GOLD-JJ-GM

GTIN: Does Not Apply

Condition: New

Tags: 10.5 mA 150 kΩ 2.2 mA/V 22.2 mm 300 / 150 mA 49.2 mm 56.3 mm 6.3 / 12.6 V 7.7 kΩ Any JJ Electronic JJ Electronics None T-12AU7-GOLD-JJ-GM Unknown ≤ 180 V ≤ 2.75 W ≤ 20 mA ≤ 300 V, 250 V typical ≥ -50 V, -8.5 V typical

Categories: Vintage Electronics

Specifications

Brand	JJ Electronics
MPN	T-12AU7-GOLD-JJ-GM
Compatible Brand	Any
Compatible Model	Any
Features	None
Amplifier Type	Unknown
Body Height	49.2 mm
Cathode Current (Ik)	≤ 20 mA
Filament Current (If)	300 / 150 mA
Filament Voltage (Uf)	6.3 / 12.6 V
Grid Voltage (Ug)	≥ -50 V, -8.5 V typical
Heater To Cathode Resistance (Rk/f)	150 kΩ
Heater To Cathode Voltage (Uk/f)	≤ 180 V
Internal Resistance (Ri)	7.7 kΩ
Item Diameter	22.2 mm
Item Height	56.3 mm
Plate Current (Ia)	10.5 mA
Plate Dissipation (Wa)	≤ 2.75 W
Plate Voltage (Ua)	≤ 300 V, 250 V typical
Transconductance (S)	2.2 mA/V

JJ Electronic 12AU7 / ECC82. This tube is Apex® Matched and Performance Tested. Precision Matching: For even greater accuracy, select for the Matched option, where both sides of dual triodes are transconductance matched.
