6973, Electro-Harmonix, Russia, Vacuum Tube, Pair, Power

6973, Electro-Harmonix, Russia, Vacuum Tube, Pair, Power

USD 48.95 USD

SKU: UwCu9dHT

Brand: Electro-Harmonix

MPN: T-6973-EH-MP

GTIN: 609722124133

Condition: Open box

Tags: -33.5 V 0.4 pF 0.5 MΩ 0.875 in. 1 MΩ 1.5 % 1.75 W 100 V 12 W 12.5 kΩ 18.5 W 2 W 2.812 in. 200 V 250°C 3.062 in. 33.5 330 V 355 Ω 375 V 410 V 440 V 450 mA 6.0 pF 6.3 V 609722124133 62 mA 6973, Electro 9.0 pF 95 mA Any Electro-Harmonix Electro-Harmonix 6973 None Power Vacuum Tube T-6973-EH-MP Unknown

Categories: Vintage Electronics

Specifications

Grid 2 Input, Linear	1.75 W
Heater-Cathode Voltage, Positive (U<sub>h/k+</sub>)	100 V
Peak AF Grid 1 Control Voltage, Class AB	33.5
Grid 2 Voltage, Pentode	330 V
Heater Current	450 mA
MPN	T-6973-EH-MP
Harmonic Distortion, Class AB	1.5 %
Plate And Grid 2 Voltage, Linear	410 V
Grid 1 Resistance, Self Bias	1 MΩ
Item Height	3.062 in.
Plate Dissipation (W<sub>a</sub>)	12 W
Grid 1 Resistance, Fixed Bias	0.5 MΩ
Features	None
Amplifier Type	Unknown
Heater Voltage	6.3 V
Cathode Current, Max Signal, Class AB	95 mA
Compatible Brand	Any
Load Resistance, Plate To Plate, Class AB	12.5 kΩ
Capacitance, Grid 1 To Plate	0.4 pF
Cathode Current, Zero Signal, Class AB	62 mA
Plate Voltage, Pentode (U<sub>a</sub>)	440 V
Power Output, Class AB	18.5 W
Capacitance, Input	9.0 pF
Item Diameter	0.875 in.
Compatible Model	Any
Grid 1 Voltage, Class Ab	-33.5 V
Heater-Cathode Voltage, Negative (U<sub>h/k-</sub>)	200 V
Capacitance, Output	6.0 pF
Brand	Electro-Harmonix
Type	6973, Electro
Grid 2 Input, Pentode	2 W
Cathode Resistor, Class AB	355 Ω
Model	Electro-Harmonix 6973
Body Height	2.812 in.
Bulb Temperature	250°C
Plate Supply Voltage, Class AB	375 V
UPC	609722124133

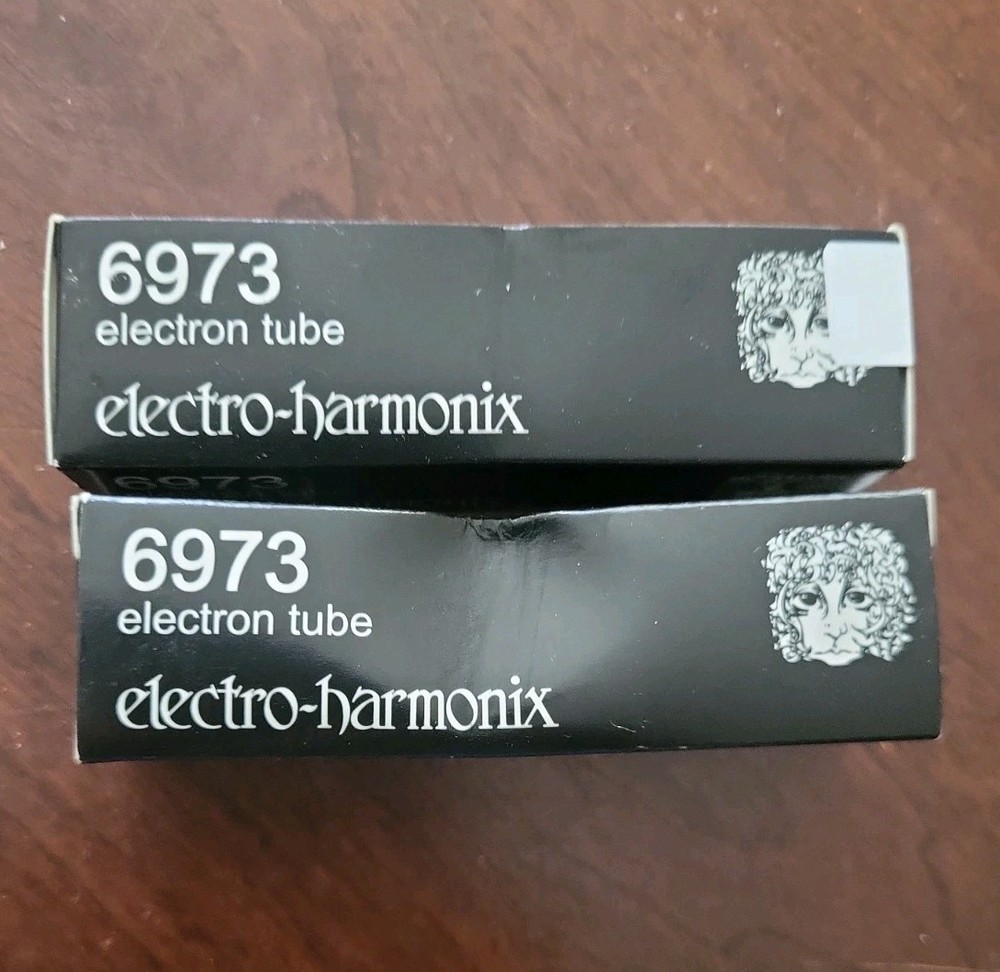

6973, Electro-Harmonix, Russia, Vacuum Tube, Pair, Power From local estate of jukebox collector. Appear new but, Untested, guaranteed.
