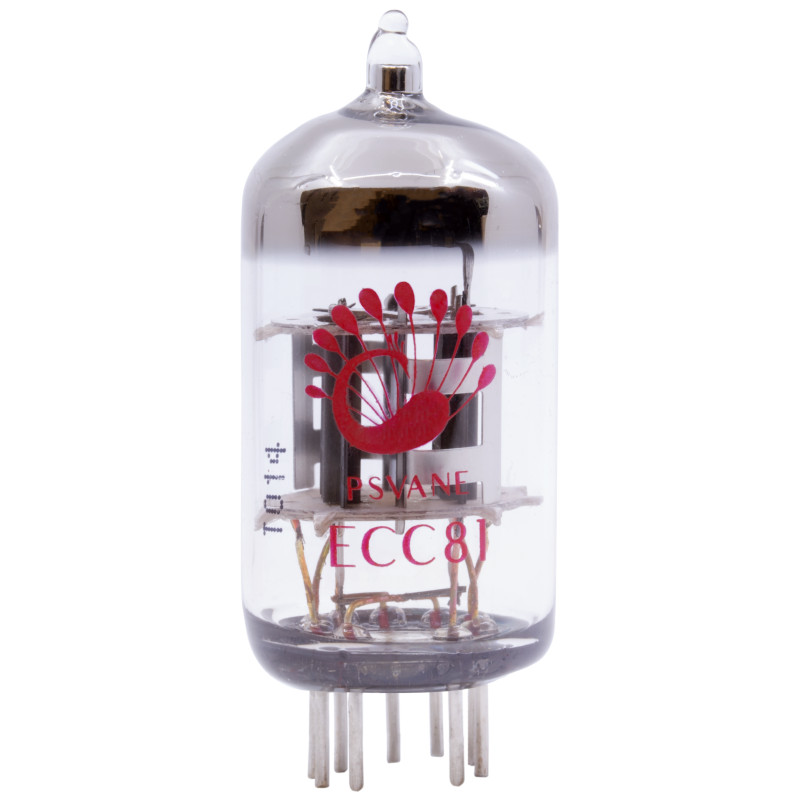

ECC81 / 12AT7, Classic Series, Psvane Vacuum Tube, Preamp

USD 18.95 USD

SKU: HkXSpODu

Brand: Psvane

MPN: T-12AT7-PSV

GTIN: Does Not Apply

Condition: New

Tags: -2 V 1 MΩ 10 mA 11 kΩ 15 mA 2.5 W 23 mm 250 V 300 / 150 mA 300 V 5.5 mA/V 50 V 57 mm 6.3 / 12.6 V 7 mm 90 V Any None Noval Psvane Shuguang 12AT7 T-12AT7-PSV Unknown Vacuum Tube

Categories: Vintage Electronics

Specifications

Brand	Psvane
MPN	T-12AT7-PSV
Compatible Brand	Any
Compatible Model	Any
Features	None
Amplifier Type	Unknown
Base	Noval
Uf	6.3/12.6 V
If	300/150 mA
Typ. Ua	250 V
Typ. Ug	-2 V
Typ. Ia	10 mA
Typ. S	5.5 mA/V
Typ. Ri	11 kΩ
Max. Ua	300 V
Max. Wa	2.5 W
Max. Ik	15 mA
Max. Ug	-50 V
Max. Uk/f	90 V
Max. Rg	1 MΩ
Bulb Width	23 mm
Total Height	57 mm
Pin Height	7 mm
Type	Vacuum Tube

This tube has a noval base and is praised for its lush and detailed sound. Bulb Width 23 mm. Product Details. Uf 6.3/12.6 V. S 5.5 mA/V. Total Height 57 mm. Pin Height 7 mm.
