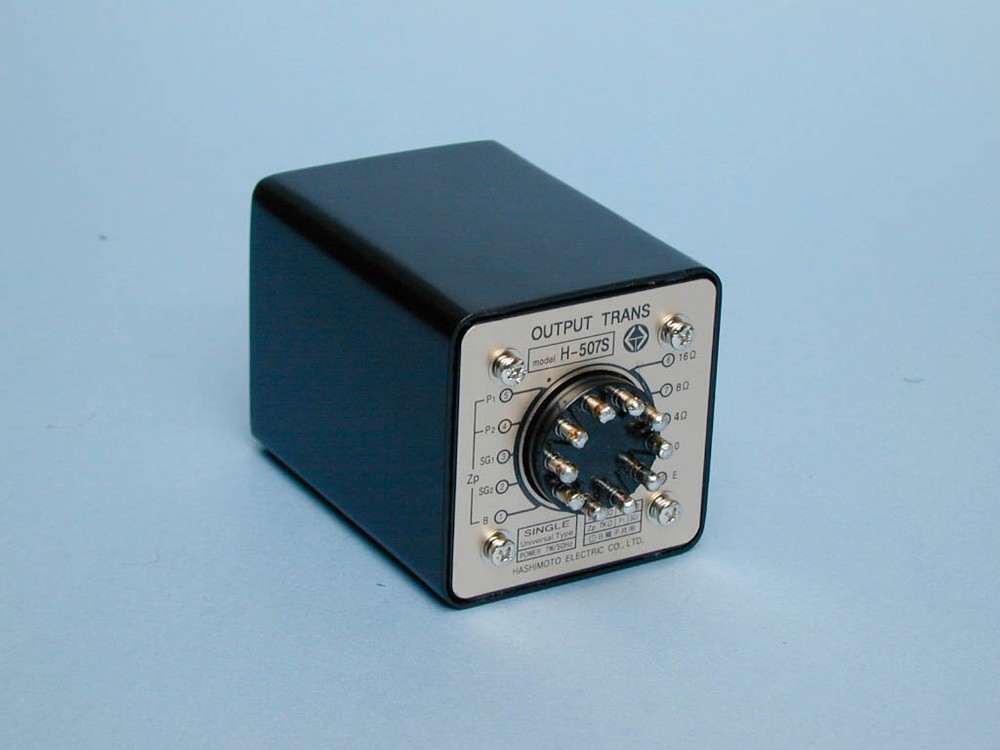

Hashimoto H-507S (Sansui) Output Transformer 7W Single 5K,7K/16,8,4 for 300B etc
USD 205.49 USD
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Model | Hashimoto H-507S |
| Country/Region Of Manufacture | Japan |
| Frequency Flattness | 45-100,000Hz (+/-3dB) |
| Output Power | 7Watts at 50Hz |
| Primary Impedance | 5KΩ/7KΩ |
| Secondary Impedance | 4,8,16Ω |
| Insertion Loss | 0.6dB |
| Weight | 1.3Kg |
| MPN | H-507S |
| Brand | Hashimoto |
Prices are shown as a single price instead of a pair.Hashimoto Electric Co., Ltd. owns all the know-how of Sansui Transformers because the transfer of SANSUI transformers to Hashimoto in 1978 was a complete transfer including technical materials and design engineers. Specification Part Number H-507SRating Power (W) 7W at 50HzPrimary Impedance 5K, 7KΩ Secondary Impedance 4,8,16ΩSG Tap ProvidedFrequency Range 45Hz～100kHz(+/-3dB)Insertion Loss 0.6dBPrimary Inductance 15H/50mA(5KΩ), 20H/40mA(7KΩ)Maximum Rating DC Current 65mAOutline type WE-66Outline(A x B x H : refer to Photo) 66mm x 66mm x 85mmScrew Size (mm) Refer to PhotoWeight 1.3KgApplicable Tube 6V6,6BQ5,71A,6F6,7189A,6AC5
