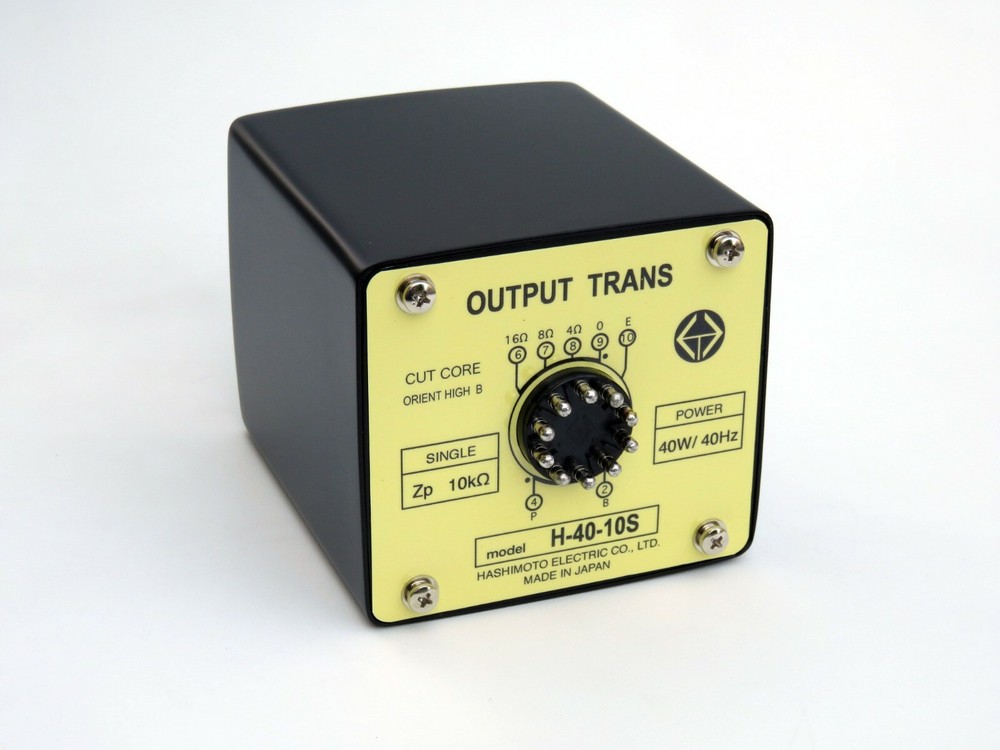

Hashimoto Output Transformer H-40-10S 40W Single 10K/16,8,4 for 845,VT-4C, UV211
Hashimoto Output Transformer H-40-10S 40W Single 10K/16,8,4 for 845,VT-4C, UV211 Hashimoto Output Transformer H-40-10S 40W Single 10K/16,8,4 for 845,VT-4C, UV211 Hashimoto Output Transformer H-40-10S 40W Single 10K/16,8,4 for 845,VT-4C, UV211

Hashimoto Output Transformer H-40-10S 40W Single 10K/16,8,4 for 845,VT-4C, UV211

USD 538.00 USD
SKU: LHQHRGHn
Condition: New
Tags: 0.3dB 10Kohms 110 x 100 x 120H (mm) 125mA 30 Days 35 to 45KHz 35H / 100mA 4,8,16 ohms 40W at 40Hz 845, VT-4C, UV211 Buyer H-40-10S Hashimoto Japan Money Back Output Transformer Returns Accepted S100
Categories: Vintage Electronics

Specifications

Return Shipping Will Be Paid ByBuyer
All Returns AcceptedReturns Accepted
Item Must Be Returned Within30 Days
Refund Will Be Given AsMoney Back
Applicable Tube845, VT-4C, UV211
ModelH-40-10S
Country/Region Of ManufactureJapan
Insertion Loss0.3dB
Primary Inductance35H / 100mA
Featured RefinementsOutput Transformer
Part NumberH-40-10S
Rating Power40W at 40Hz
Primary Impedance10Kohms
Secondary Impedance4,8,16 ohms
Frequency Flatness35 to 45KHz
Maximum Rating Current125mA
MPNH-40-10S
Outline Size110 x 100 x 120H (mm)
BrandHashimoto

Since the transfer of the SANSUI transformer to Hashimoto, which was carried out in 1978, was a complete transfer including technical materials and design engineers, Hashimoto Electric Co., Ltd. owns all the know-how of the sansui transformer. Specification Part Number : :H-40-10S Rating Power (W) : :40W at 40Hz Primary Impedance : :10kohm Secondary Impedance :4,8,16ohm SG tap Provided : :No Frequency Range : :35Hz to 45kHz (+/- 2dB) Insertion Loss : :0.3dB Primary Inductance w/ Applied Current : :35H/100mA Maximum Rating DC Current : :125mAdc Outline type : :WE-102 Size (AxBxH : refer to Drwg.) : :110x100x120(mm) Screw Size (mm) :M3 Weight :4.1Kg Applicable Tube :845, VT-4C, UV211
