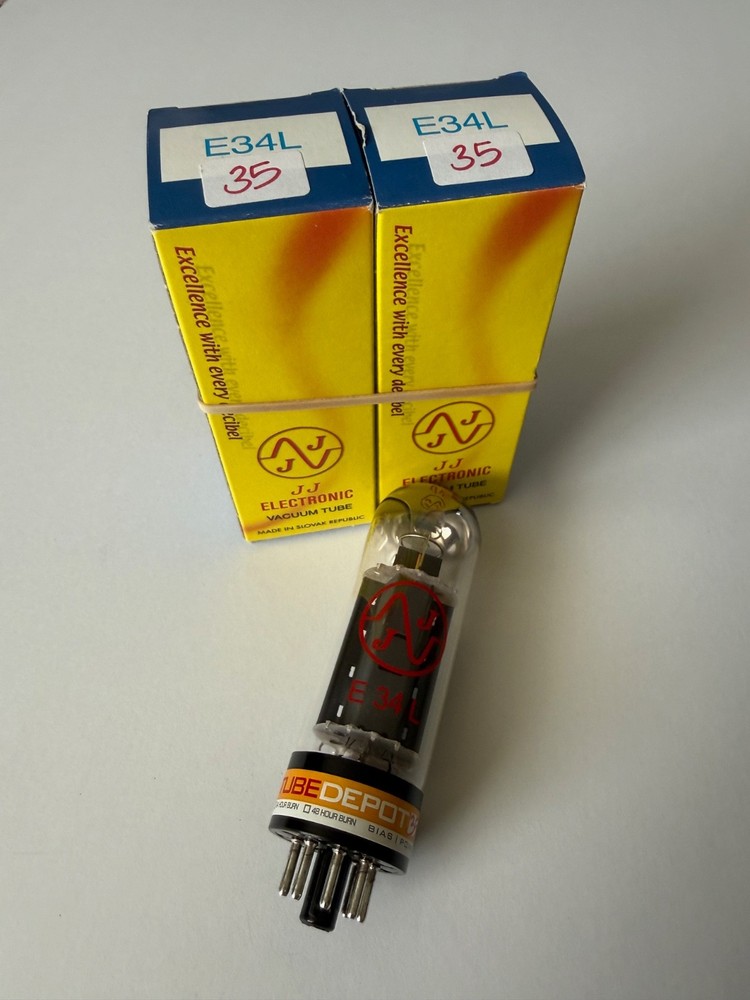

JJ Electronic E34L Tubes (Matched Pair)

USD 44.00 USD

SKU: p4GjpoEA

Brand: JJ Electronic

MPN: E34L

GTIN: 0609722122986

Condition: New

Tags: 0 V typical 0609722122986 1.3 pF 1.5 A 10 pF 100 mA 11 mA/V 112 mm 14.9 mA 15 kΩ 15.5 pF 20 kΩ 33.3 mm 6.3 V 8 W 98 mm Any E34L JJ Electronic JJ Electronic E34L None Slovakia Unknown Vacuum Tube ≤ 100 V ≤ 150 mA ≤ 25 W ≤ 800 V, 250 V typical ≤ 800 V, 265 V typical

Categories: Vintage Electronics

Specifications

Filament Voltage (U<sub>f</sub>)	6.3 V
Grid Current 2 (I<sub>g2</sub>)	14.9 mA
Plate Capacitance (c<sub>a</sub>)	10 pF
MPN	E34L
Heater To Cathode Voltage (U<sub>k/f</sub>)	≤ 100 V
Grid 2 Dissipation (W<sub>g2</sub>)	8 W
Grid Voltage 3 (U<sub>g3</sub>)	0 V typical
Item Height	112 mm
Plate Dissipation (W<sub>a</sub>)	≤ 25 W
Grid To Plate Capacitance (c<sub>a/g</sub>)	1.3 pF
Heater To Cathode Resistance (R<sub>k/f</sub>)	20 kΩ
Features	None
Amplifier Type	Unknown
Plate Current (I<sub>a</sub>)	100 mA
Compatible Brand	Any
Grid Capacitance (c<sub>g1</sub>)	15.5 pF
Internal Resistance (R<sub>i</sub>)	15 kΩ
Cathode Current (I<sub>k</sub>)	≤ 150 mA
Item Diameter	33.3 mm
Compatible Model	Any
Grid Voltage 2 (U<sub>g2</sub>)	≤ 800 V, 265 V typical
Brand	JJ Electronic
Type	Vacuum Tube
Filament Current (I<sub>f</sub>)	1.5 A
Model	JJ Electronic E34L
Body Height	98 mm
Country Of Origin	Slovakia
Plate Voltage (U<sub>a</sub>)	≤ 800 V, 250 V typical
Transconductance (S)	11 mA/V
UPC	0609722122986

E34L is a more powerful EL34 with more headroom and deeper lows. It is a little more aggressive than the EL34. Made in the Slovak Republic. As described on the JJ Electronic product page.
