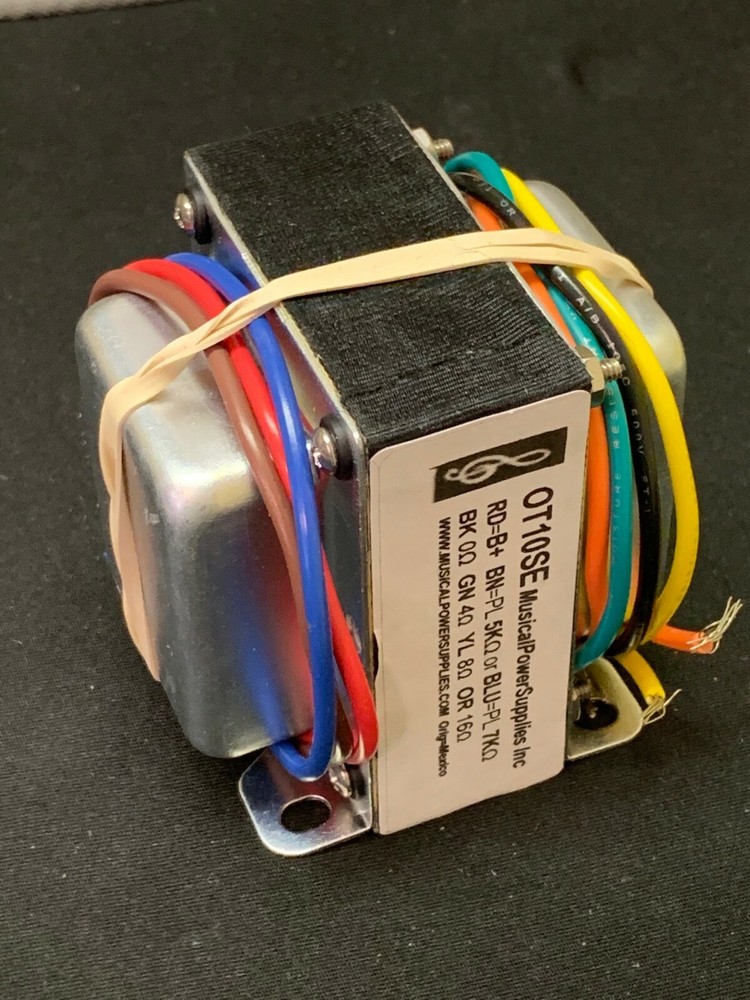

OT10SE-VC87 Single Ended Output Transformer 12VA 5K,7Kohm:4/8/16 60mA
USD 39.95 USD
Specifications
| Country Of Origin | Mexico |
| Type | Transformers |
| Model | OT10SE VC87 |
| Country Of Manufacture | Mexico |
| MPN | OT10SE VC87 |
I'm using an oversized gapped stack of audio grade 29M6 laminations and bobbin wound construction. It's a 2x1 interleaved winding with two input impedances and three output impedances. It surface mounts by four screws on a 1.75in wide x 1.75in deep pattern.
