Specifications

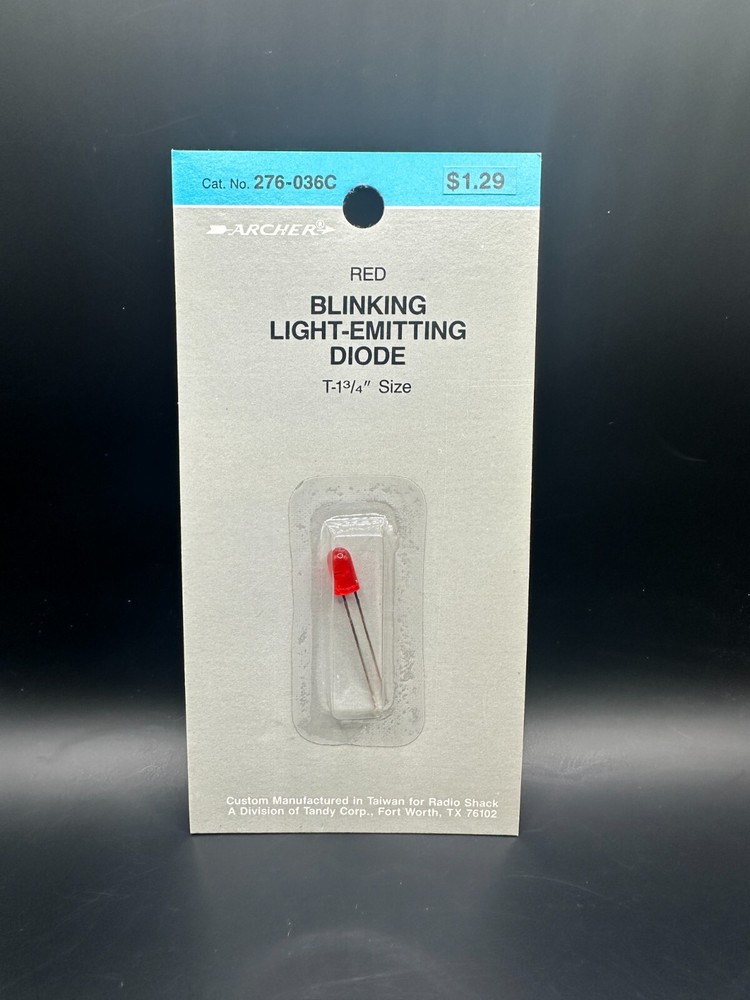

Red Blinking LED Combines an M-O-S integrated circuit driver and red LED within a T-1 3/4" (5mm) plastic LED housing. Because the resistance of the M-O-S driver transistors limits the current through the LED, no external current-limiting resistor is necessary. Can be driven directly by CMOS and TTL circuits. Absolutely Maximum RatingsSupply Voltage: 5VDCON-State Forward Current: 80mAReverse Voltage: 0.4VDC Opto-Electrical CharacteristicsSupply Voltage: 2.5 - 5.0 VDC (3V typ.)ON-State Forward Current: 55mAPeak Wavelength: 697 nanometersBlink Rate: 0.5-3.0 Hz (2.0 Hz typ.)Luminous Intensity: 1.2 mcd (typ. @ 3V)
