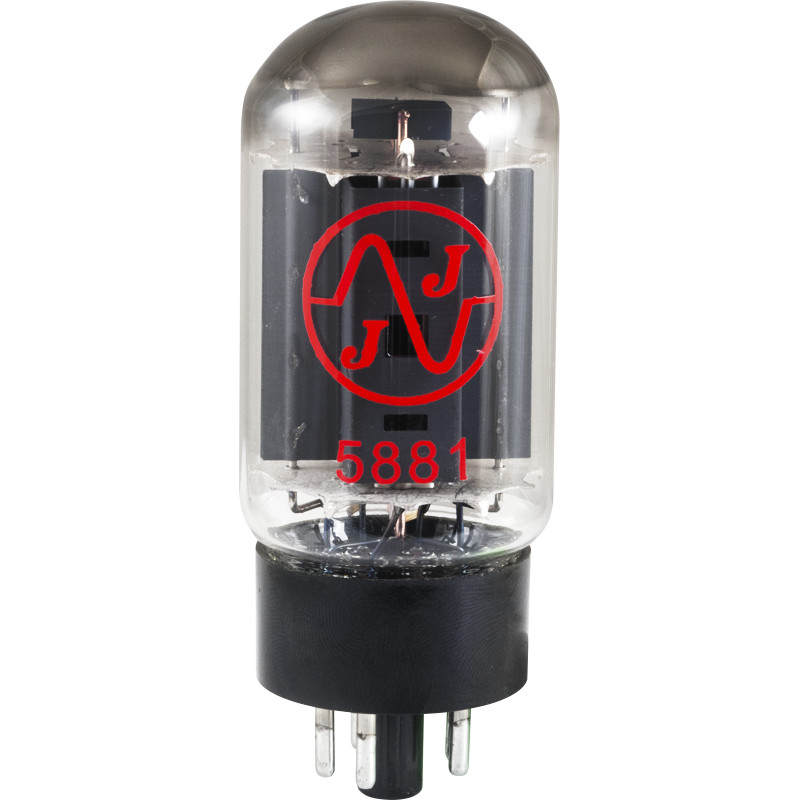

Vacuum Tube, 5881, JJ Electronics, Power
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Refund Will Be Given As | Money Back |
| Brand | JJ Electronics |
| Amplifier Type | Unknown |
| Item Diameter | 38 mm |
| Item Height | 96.5 mm |
| Body Height | 82.0 mm |
| Filament Voltage (U<sub>f</sub>) | 6.3 V |
| Filament Current (I<sub>f</sub>) | 0.9 A |
| Plate Voltage (U<sub>a</sub>) | ≤ 450 V, 250 V typical |
| Plate Current (I<sub>a</sub>) | 63 mA |
| Grid 1 Voltage (ug1) | -14 V typical |
| Grid 2 Voltage (U<sub>g2</sub>) | ≤ 450 V, 250 V typical |
| Plate Resistance (R<sub>a</sub>) | 2.5 kΩ |
| Plate Dissipation (W<sub>a</sub>) | ≤ 26 W |
| Grid Circuit Resistance (R<sub>g</sub>), Fixed Bias | 0.1 MΩ |
| Grid Circuit Resistance (R<sub>g</sub>), Self Bias | 0.5 MΩ |
| Type | Vacuum Tube |
| MPN | T-5881-JJ |
| Compatible Brand | Any |
| Compatible Model | Any |
Product Details Vacuum Tube, 5881, JJ Electronics, PowerT-5881-JJSold individually The JJ Electronic 5881 is very similar to the 6L6GC but with a plate dissipation of 23W rather than 30W. Another physical difference is the shorter bulb. These tubes have a soft and balanced response that sounds great in both guitar amps and hifi equipment. The JJ 5881 will work in any amp that uses 6L6 tubes. Not what you're looking for? Check out our other products in this category:Vacuum Tubes -> PowerClick here to visit our ebay store's homepage.MeasurementsProduct Measurements:Body Height82.0 mmFilament Current (If)0.9 AFilament Voltage (Uf)6.3 VGrid 1 Voltage (ug1)-14 V typicalGrid 2 voltage (Ug2)≤ 450 V, 250 V typicalGrid Circuit Resistance (Rg), Fixed Bias0.1 MΩGrid Circuit Resistance (Rg), Self Bias0.5 MΩItem Diameter38 mmItem Height96.5 mmPlate Current (Ia)63 mAPlate Dissipation (Wa)≤ 26 WPlate Resistance (Ra)2.5 kΩPlate Voltage (Ua)≤ 450 V, 250 V typicalPackaging Information:Packaging Dimensions1.6 in. x 1.6 in. x 4.5 in.Weight (Packaging)0.1301 lbs.About UsAbout Amplified Parts:Backed by over 30 years of experience serving the electronic hobbyist market, Amplified Parts® provides the parts you need to modify, repair, or build your own audio and musical instrument equipment, from transistor radios to vacuum tube amplifiers, guitar pedals, and modular synthesizers. Our mission is to provide our customers with high quality products from an inventory of over 12,000 unique items, and to share our expertise via our large library of tech articles and equipment build guides.Whether you are building cutting-edge equipment or restoring classic gear with historical accuracy, Amplified Parts® has what you need.We typically ship the same day if your order is placed before 12:00pm Arizona Time Monday through Friday excluding holidays.All packages are insured and we assume responsibility for the shipment until the carrier shows delivery.Click here to visit our ebay storefront.
