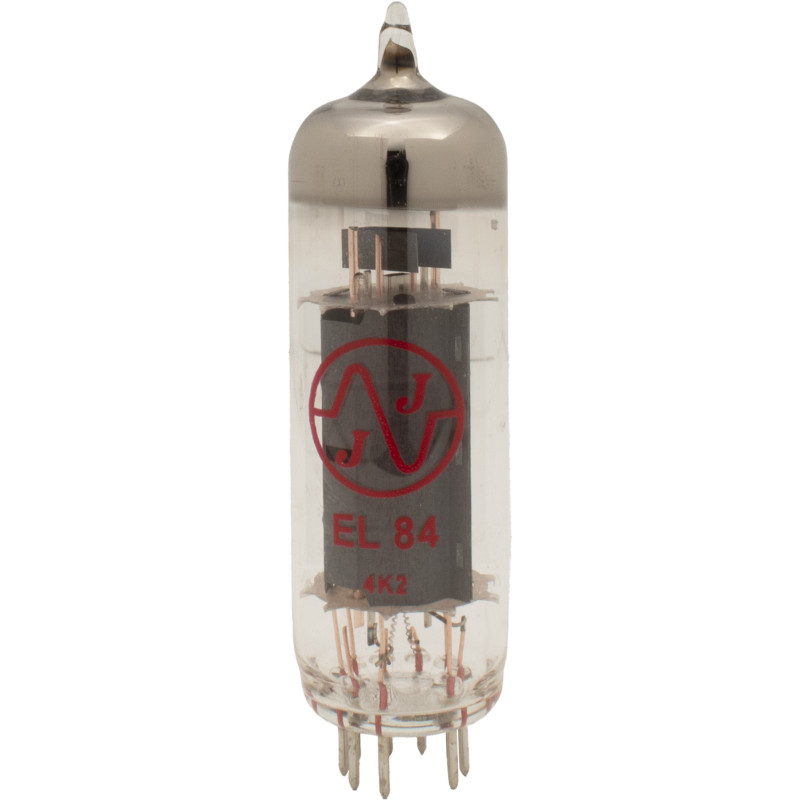

Vacuum Tube, EL84, JJ Electronics, Apex Burned-In Matched Pair, Power

USD 41.80 USD

SKU: upEzkZDP

Brand: Apex Matched

MPN: T-EL84-JJ-MPB

GTIN: 841358108914

Condition: New

Tags: 0.15 pF 0.3 MΩ 0.6 pF 0.76 A 1 MΩ 10 pF 11.3 mA/V 22 mm 40 kΩ 48 mA 5.1 pF 6.3 V 71.4 mm 77.8 mm 841358108914 Any Apex Matched JJ Electronic None T-EL84-JJ-MPB Unknown Vacuum Tube ≤ 100 V ≤ 12 W ≤ 300 V, 250 V typical ≤ 65 mA

Categories: Vintage Electronics

Specifications

Brand	Apex Matched
MPN	T-EL84-JJ-MPB
Compatible Brand	Any
Compatible Model	Any
Features	None
Amplifier Type	Unknown
Item Diameter	22 mm
Item Height	77.8 mm
Body Height	71.4 mm
Filament Voltage (U<sub>f</sub>)	6.3 V
Filament Current (I<sub>f</sub>)	0.76 A
Plate Voltage (U<sub>a</sub>)	≤ 300 V, 250 V typical
Plate Current (I<sub>a</sub>)	48 mA
Grid Voltage 2 (U<sub>g2</sub>)	≤ 300 V, 250 V typical
Transconductance (S)	11.3 mA/V
Internal Resistance (R<sub>i</sub>)	40 kΩ
Plate Dissipation (W<sub>a</sub>)	≤ 12 W
Cathode Current (I<sub>k</sub>)	≤ 65 mA
Heater To Cathode Voltage (U<sub>k/f</sub>)	≤ 100 V
Grid Circuit Resistance 1 (R<sub>g1</sub>), Fixed Bias	0.3 MΩ
Grid To Cathode Capacitance (c<sub>g/k</sub>)	10 pF
Plate Capacitance (c<sub>a</sub>)	5.1 pF
Grid To Plate Capacitance (c<sub>a/g</sub>)	0.6 pF
Grid 1 To Filament Capacitance (c<sub>g1f</sub>)	0.15 pF
Grid Circuit Resistance 1 (R<sub>g1</sub>), Automatic Bias	1 MΩ
Type	Vacuum Tube
UPC	841358108914

The JJ Electronic EL84 is a solidly built EL84 / 6BQ5 with excellent tonal qualities. When saturated the harmonics are rich and dynamic. The JJ EL84 nails the classic sound of this tube. This tube can replace any EL84 or 6BQ5 tube.
