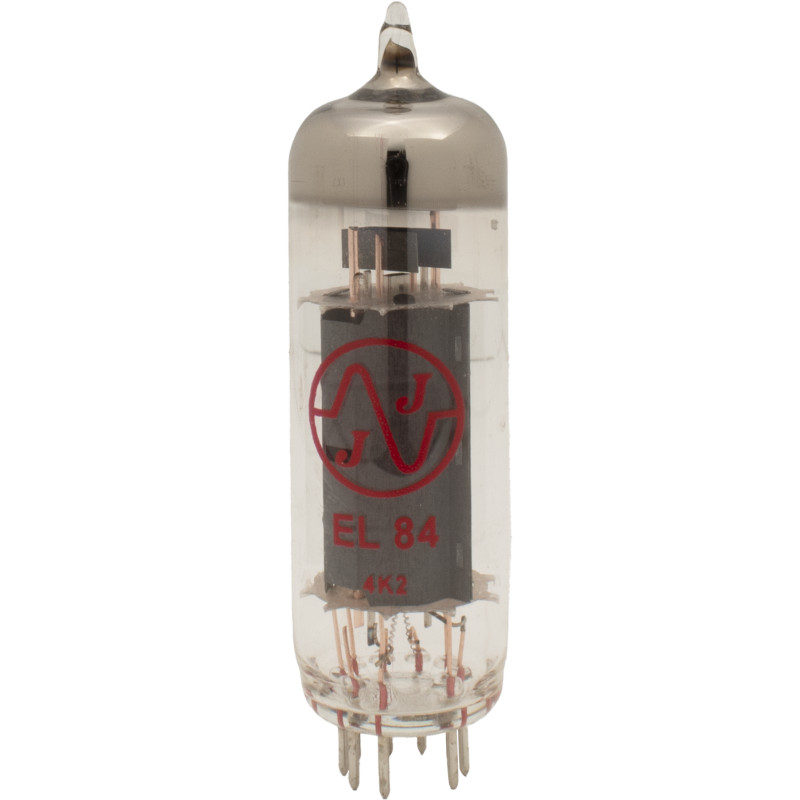

Vacuum Tube, EL84, JJ Electronics, Apex Matched Pair, Power

USD 38.90 USD

SKU: 9iOtG8Da

Brand: Apex Matched

MPN: T-EL84-JJ-MP

GTIN: 0609722123105

Condition: New

Tags: 0.15 pF 0.3 MΩ 0.6 pF 0.76 A 0609722123105 1 MΩ 10 pF 11.3 mA/V 22 mm 40 kΩ 48 mA 5.1 pF 6.3 V 71.4 mm 77.8 mm Any Apex Matched JJ Electronic None T-EL84-JJ-MP Unknown Vacuum Tube ≤ 100 V ≤ 12 W ≤ 300 V, 250 V typical ≤ 65 mA

Categories: Vintage Electronics

Specifications

Brand	Apex Matched
MPN	T-EL84-JJ-MP
Compatible Brand	Any
Compatible Model	Any
Features	None
Amplifier Type	Unknown
Item Diameter	22 mm
Item Height	77.8 mm
Body Height	71.4 mm
Filament Voltage (U<sub>f</sub>)	6.3 V
Filament Current (I<sub>f</sub>)	0.76 A
Plate Voltage (U<sub>a</sub>)	≤ 300 V, 250 V typical
Plate Current (I<sub>a</sub>)	48 mA
Grid Voltage 2 (U<sub>g2</sub>)	≤ 300 V, 250 V typical
Transconductance (S)	11.3 mA/V
Internal Resistance (R<sub>i</sub>)	40 kΩ
Plate Dissipation (W<sub>a</sub>)	≤ 12 W
Cathode Current (I<sub>k</sub>)	≤ 65 mA
Heater To Cathode Voltage (U<sub>k/f</sub>)	≤ 100 V
Grid Circuit Resistance 1 (R<sub>g1</sub>), Fixed Bias	0.3 MΩ
Grid To Cathode Capacitance (c<sub>g/k</sub>)	10 pF
Plate Capacitance (c<sub>a</sub>)	5.1 pF
Grid To Plate Capacitance (c<sub>a/g</sub>)	0.6 pF
Grid 1 To Filament Capacitance (c<sub>g1f</sub>)	0.15 pF
Grid Circuit Resistance 1 (R<sub>g1</sub>), Automatic Bias	1 MΩ
Type	Vacuum Tube
UPC	0609722123105

The JJ Electronic EL84 is a solidly built EL84 / 6BQ5 with excellent tonal qualities. When saturated the harmonics are rich and dynamic. The JJ EL84 nails the classic sound of this tube. This tube can replace any EL84 or 6BQ5 tube.
