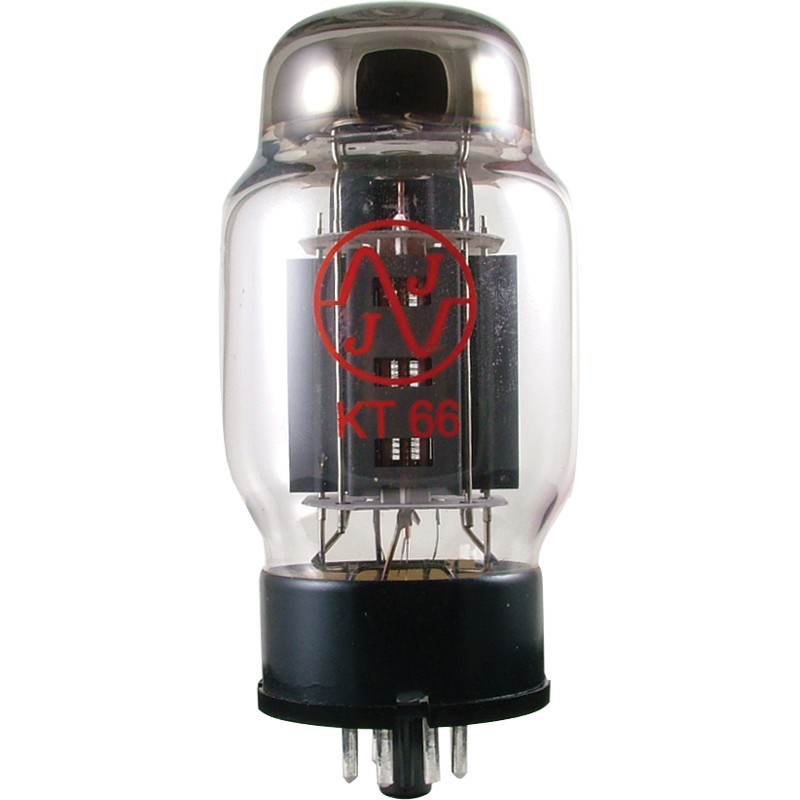

Vacuum Tube, KT66, JJ Electronics, Apex Matched Pair, Power

USD 114.30 USD

SKU: MmOtG8Db

Brand: Apex Matched

MPN: T-KT66-JJ-MP

GTIN: 609722123136

Condition: New

Tags: 1.3 A 10 pF 110 mm 125 mm 16 pF 2.3 pF 22.5 kΩ 3.5 W 52 mm 6 mA/V 6.3 V 609722123136 85 mA Any Apex Matched JJ Electronic None T-KT66-JJ-MP Unknown Vacuum Tube ≤ 150 mA ≤ 25 W ≤ 550 V, 250 V typical ≤ 7 mA ≥ -200 V, -15 V typical

Categories: Vintage Electronics

Specifications

Brand	Apex Matched
MPN	T-KT66-JJ-MP
Compatible Brand	Any
Compatible Model	Any
Features	None
Amplifier Type	Unknown
Item Diameter	52 mm
Item Height	125 mm
Body Height	110 mm
Filament Voltage (U<sub>f</sub>)	6.3 V
Filament Current (I<sub>f</sub>)	1.3 A
Plate Voltage (U<sub>a</sub>)	≤ 550 V, 250 V typical
Plate Current (I<sub>a</sub>)	85 mA
Grid 1 Voltage (U<sub>g1</sub>)	≥ -200 V, -15 V typical
Grid 2 Voltage (U<sub>g2</sub>)	≤ 550 V, 250 V typical
Grid 2 Current (I<sub>g2</sub>)	≤ 7 mA
Transconductance (S)	6 mA/V
Internal Resistance (R<sub>i</sub>)	22.5 kΩ
Plate Dissipation (W<sub>a</sub>)	≤ 25 W
Grid 2 Dissipation (W<sub>g2</sub>)	3.5 W
Cathode Current (I<sub>k</sub>)	≤ 150 mA
Grid Capacitance (c<sub>g1</sub>)	16 pF
Plate Capacitance (c<sub>a</sub>)	10 pF
Grid To Plate Capacitance (c<sub>a/g</sub>)	2.3 pF
Type	Vacuum Tube
UPC	609722123136

The JJ Electronic KT66 is a sonically faithful reproduction of the original tubes with a robust construction encased in a thick glass envelope. This tube has a tone that is warm, thick, and straightforward.
