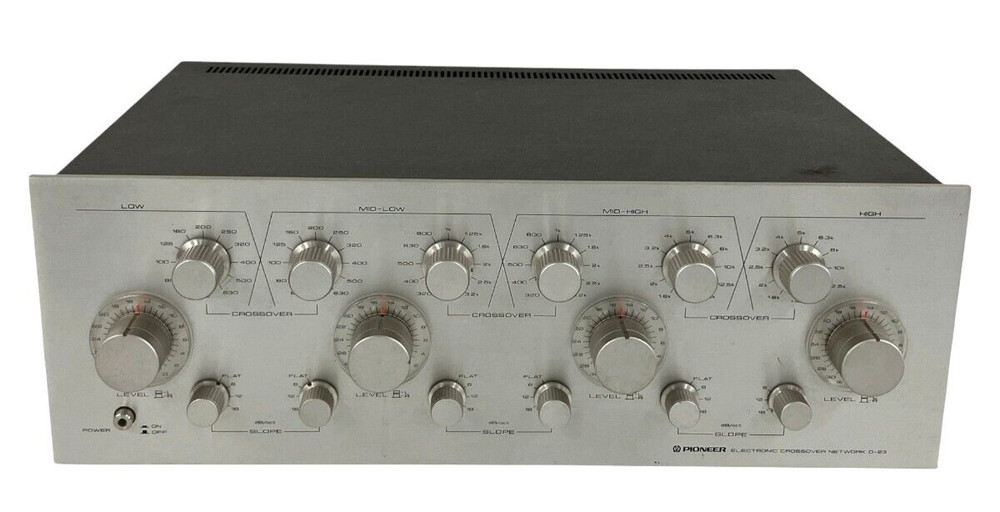

Pioneer D-23 Channel Divider 4-Way Electronic Crossover Network AC100V 50Hz/60Hz
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Pioneer |
| Type | Channel Divider |
| Model | D-23 |
| MPN | D-23 |
| Country/Region Of Manufacture | Japan |
Pioneer D-23 Channel Divider 4-Way Electronic Crossover Network AC100V 50Hz/60HzDescriptionModel Electronic Crossover NetworkCircuit methodBuffer amplifier section: Positive and negative dual power supply class A SEPPFilter section: CR passive filter (6dB/oct, 12dB/oct)CR active filter + CR passive filter (18dB/oct)2, 3, 4 way possibleCutoff frequency Low(High Cut), Mid Low(Low Cut)63, 80, 100, 125, 160, 200, 250, 320, 400, 500, 630HzMid Low(High Cut), Mid High(Low Cut):320, 400, 500, 630, 800, 1k, 1.25k, 1.6k, 2k, 2.5k, 3.5kHzMid High(High Cut), High(Low Cut):1.6k, 2k, 2.5k, 3.2k, 4k, 5k, 6k, 8k, 10k, 12.5k, 16kHzSlope characteristics 6dB/oct, 12dB/oct, 18dB/octLevel control: 0 to -30dB (1dB step), -∞, left and right channels independently variableInsertion loss 0~-2dBInput impedance 100kΩOutput impedance 4kΩ(MAX)Output (RL:50kΩ) 1V, 10V (MAX)Harmonic distortion rate (20Hz to 20kHz) 0.005% (1V output)0.1% (10V output)Frequency characteristics (Low end/High end) 10Hz/100kHz +0 -1dBSN ratio (at output 1V) 100dB (IHF, A network, short circuit)Semiconductor used: Transistor: 71 piecesDiodes, etc.: 18 piecesPower supply voltage 100V, 50Hz/60HzPower consumption (Electrical Appliance and Material Control Law) 11WAC outlet power switch not linked: 1 systemExternal dimensions Width 420x Height 150x Depth 352mmWeight 8.7kgCaution (for remote areas)Additional fees may apply for those in remote areas.Shipping Shipping will be by FedEx or EMS.Please contact us if you have any other requests.There are some delays due to the corona.Please understand that it may take some time to arrive. Some countries exclude shipping.Please contact us for more information and we will try to accommodate you. We will ship to the address you have registered with eBay.Please note that we do not respond to requests to change the shipping address after the order is placed.Please do not change your address after shipping.Additional charges will be incurred.Please note that you will be billed if this occurs.If the buyer does not receive the item and returns it to us, the buyer will be responsible for the customs and shipping charges. We ship Monday through Friday.This service is not available on weekends as shipping companies are closed.Please buy with confidence. International Buyers - Please Note:Note: Import duties, taxes and charges are not included in the price of the item or the shipping cost. These charges are the responsibility of the buyer. Please check with your country's customs office to determine how much these additional costs will be prior to bidding or purchasing.
